Fiber Drop Cable 1 Core Optical Drop Fibre Cable

Ask Lasest Price
Brand Name :	PUNAISGD
Model Number :	GJYXFCH-1B6a1
Certification :	CE/ROHS/ISO9001
Price :	negociate
Payment Terms :	T/T,Western Union
Supply Ability :	1000000km/month
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

Fiber Drop Cable 1 Core Optical Drop Fibre Cable

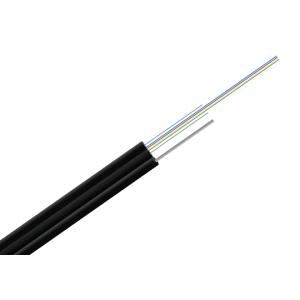

FTTH Outdoor Drop Cable 1000M 1Core G657A1 GJYXFCH-1B6a1 FRP Strength Member Fiber Optic Cable

The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

Model: GJXH / GJXFH / GJYXCH / Ftth Gjyxfch

1. GJXH- The optical fiber unit is positioned in the central. Two parallel steel wire are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

2. GJXFH- The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.
3. GJYXCH-The optical fiber unit is positioned in the centre. Two parallel steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
4. Ftth Gjyxfch- The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Bow-type Drop Outdoor/Indoor Cable for Access Network Technical Parameters
Fiber Count	Cable Type	Cable	Cable Weight (kg/km)	Tensiles Strength	Crush Resistance Long/short	Benging Radius
1	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
1	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
