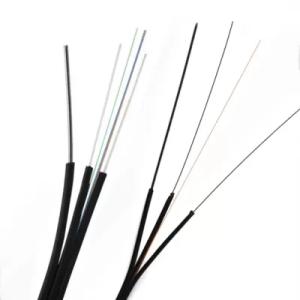

Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting

guangzhou fiber cablepuls co ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting from wholesalers

    Buy cheap Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting from wholesalers
    • Buy cheap Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting from wholesalers
    • Buy cheap Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting from wholesalers
    • Buy cheap Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting from wholesalers

    Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting

    Ask Lasest Price
    Brand Name : PUNAISGD
    Model Number : GJYFXCH-1F/GJFXH-1F
    Certification : CE/ROHS/ISO9001
    Price : negociate
    Payment Terms : T/T,Western Union
    Supply Ability : 1000000km/month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting

    Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting

    Application

    GJYXCH 1~4cores FTTH Fiber Optic Drop Cable with Phosphating steel wire messenger G652D/G657A1/ G657A2 fiber LSZH outer sheath GJYX(F)CH is the FTTH drop cable with self-supporting. The optical fiber unit is positioned in the centre. Two steel wires (or FRP, KFRP ) are placed at the two sides ,then an additional steel wire is attached to the outside. Finally the cable is completed with a black or white color PVC or LSZH (low smoke, no halogen, flame retardant) sheath.

    Specification
    GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode
    Outdoor FTTH Drop Cable
    With FRP & steel wire as strengthen member
    LSZH outer sheath
    G.657A1 optic fiber (or as request)
    Fiber To The Home (ftth)
    Product life of 15 years.
    Storage/Operating Temperature: -40°C to + 70°C
    Optical Cable Appplication
    Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
    Laying method:
    Working temperature: -40ºC~+60ºC
    Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter
    Bow-type Drop Outdoor/Indoor Cable for Access Network
    Technical Parameters
    Fiber Count
    Cable Type
    Cable
    Cable Weight
    (kg/km)
    Tensiles Strength
    Crush Resistance Long/short
    Benging Radius
    1
    GJYXCH
    2.0*5.0
    20
    300/600
    1000/2000
    20D/40D
    2
    GJYXCH
    2.0*5.0
    20
    300/600
    1000/2000
    20D/40D
    4
    GJYXCH
    2.0*5.0
    20
    300/600
    1000/2000
    20D/40D
    1
    GJYXCH
    2.0*5.0
    19
    300/600
    1000/2000
    20D/40D
    2
    GJYXCH
    2.0*5.0
    19
    300/600
    1000/2000
    20D/40D
    4
    GJYXCH
    2.0*5.0
    19
    300/600
    1000/2000
    20D/40D

    Quality Ftth Drop Cable Fiber Cable 1/2/4 Core FRP Fiber Optic Cable Self-supporting for sale
