| Brand Name : | PUNAISGD |
| Model Number : | ADSS-48B1.3 |
| Certification : | CE/ROHS/ISO9001 |
| Price : | negociate |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 100000 |
| Delivery Time : | 7days |

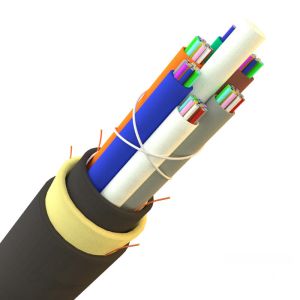

All-dielectric self-supporting optic cable is another name for ADSS fiber optic cable. There are two modes in optical fiber; single-mode and multimode fiber.
The self-supporting type indicates that the optic cable’s reinforcing member can withstand its weight and external load, has high mechanical strength, and can withstand the strong electric environment’s impact.
A comprehensive transmission circuit infrastructure with high-reliability performance is provided by the ADSS fiber optic cable system, which includes cables, suspension, dead-end, and termination enclosures.
Dimensions of Cable Constructions
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.5±0.2 | 80 |
6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
24 | 1+6 | 12 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.3 | 80 |
36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.3 | 85 |
|
|
